PRODUCTS | VEHICLE BRIDGES
Bridge In A
Bag. Plank.
EB100.
Modular, weld-free vehicle bridge. Flat-packs. Hand-launched to 30m / 100ft. No crane. No far-bank access. MLC40.
MAXIMUM SPAN FROM HOME BANK
Lighter than incumbent systems
More compact for transport
Vehicle bridge load capacity UP TO 40MLC
EB100 VEHICLE BRIDGE
Specification
EB100 vehicle bridge at a glance.
max span
30m / 100ft
Headline vehicle rating
MLC40
Peak rating (5 m span)
MLC50
Truss configuration
Octet-Truss
Superstructure material
Aluminium 6082-T6
Surface treatment
Anodised
Max component weight
20kg
Launch skate
13kg / 2m beam
Stowage
Flat-packed 2m
12 m bridge transport
0.8 × 2.0 × 1.5m
30 m bridge transport
4.5 × 2.0 × 1.5m
Setup time
30 min – 3 hrs
Site preparation
Basic hand tools
Operator certification
None required
Manufactured in
UK & Poland
NATO registered
Ncage U19F4
Overview
Ultra-portable.
Fast-response. No excuses.
A novel innovation using lightweight, modular, weld-free spaceframes to construct MLC12+ vehicle bridges — no tools, cranage, or specialist equipment required. Components 10× lighter (20kg max.) and 20× more compact than incumbent Bailey systems; negating any requirement for site-cranage or 6+ person lifts.
Why eb100
Three problems the EB100 was built to solve.
01 | 03 — Access
No far-bank access
Contested or destroyed crossings rarely leave you the far side. The EB100 cantilevers from your bank only. The launch nose lands first — you push the truss across by hand, from one side only.
02 | 03 — Crew
No cranes. No plant. No engineer.
Components peak at 20kg. A small team assembles bay-by-bay and rolls the bridge over a demountable steel skate. No HIAB, no abnormal loads, no specialist operator licence required.
03 | 03 — Reuse
Reusable. Repairable. In-service.
Bolted node connectors and anodised aluminium tubes designed for repeated assembly and disassembly cycles, field service, and long-life corrosion resistance. Not a single-use bridge.
Key features
Built different.
Deployed differently.
01 | 04 — portability
Ultra-Portable

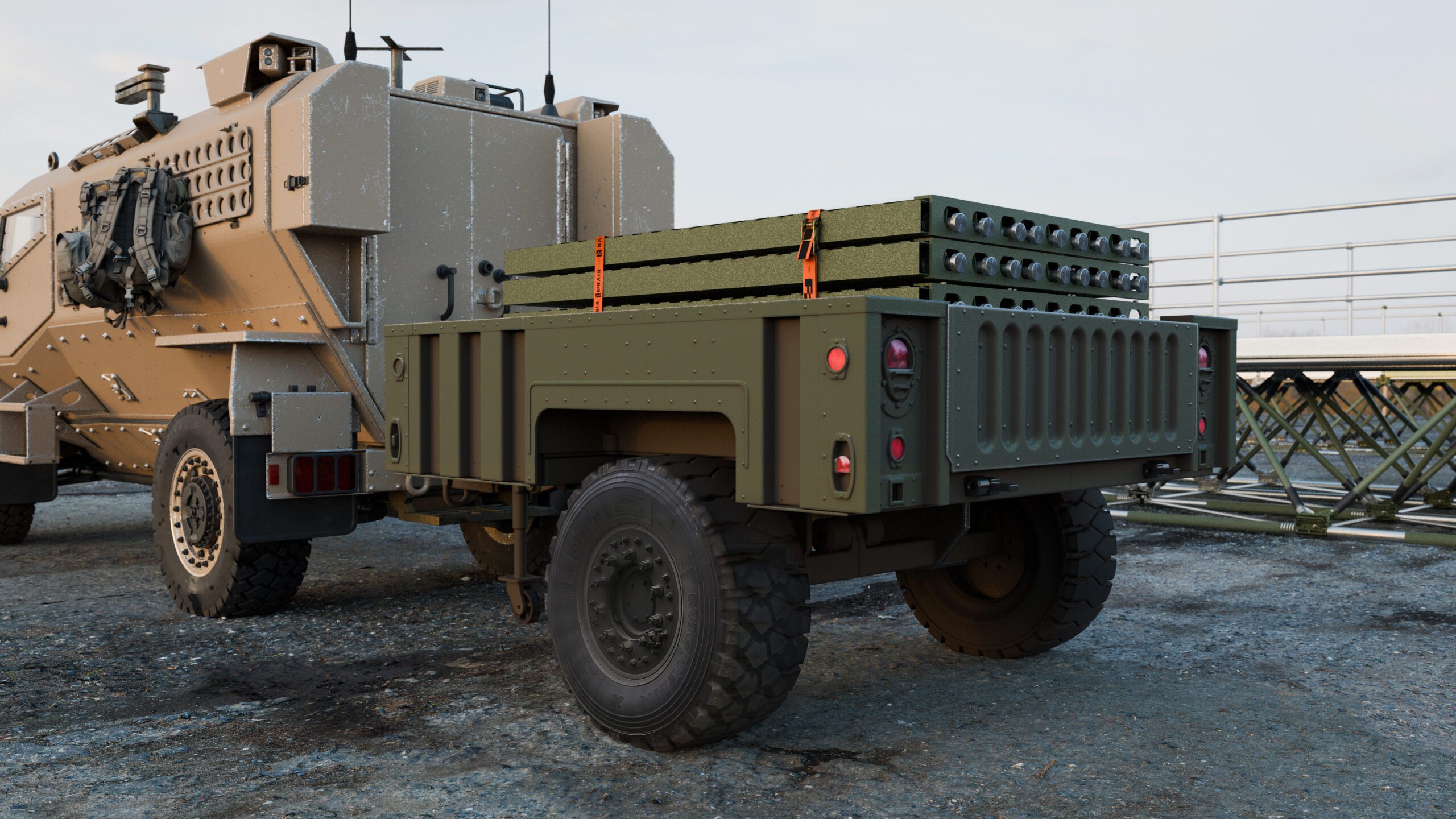

Uniquely flat-packed stowage inside 2 m hollow deck sections. An entire 12m bridge condenses to 0.8 × 2.0 × 1.5m — transportable in a single Foxhound or Humvee trailer. The 30m bridge requires only one DROPS vehicle.
02 | 04 — portability
No Site Cranage
Components 10× lighter (20kg max.) and 20× more compact than incumbent Bailey systems — negating any requirement for site cranage or six-person lifts. A small team assembles bay-by-bay and pushes the bridge across by hand..
03 | 04 — Deployment
Unique Push-Launch
Patented cantilever-launch using a demountable lightweight steel skate (2m beam, 13kg). Pushed from the home bank only. No far-bank access required at any stage. Launch nose integrates directly into the main framework at 30m spans.
04 | 04 — capacity
MLC10 to MLC50
10 Te (Foxhound) rating @ maximum 30m span. MLC30 @ spans up to 15m. MLC40 @ 12m. MLC50 @ 5 m. Extended: 90m on pier sets · 120m on M3 pontoon.

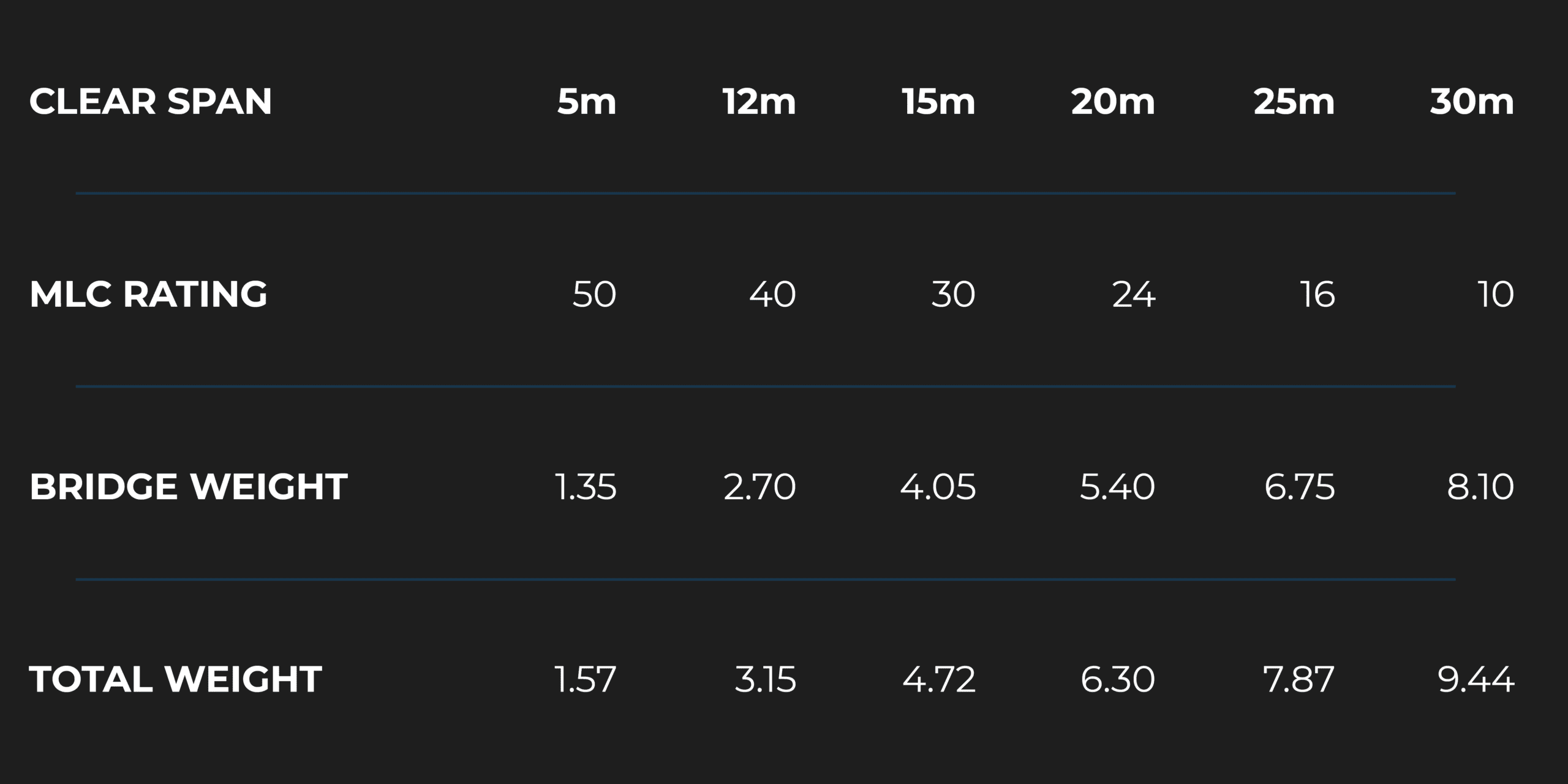

Load capacity
SPAN VS MLC RATING.
Capacity figures for the EB100 vehicle bridge in 6082-T6 aluminium. MLC = NATO Military Load Classification (tonnes).
| Clear Span | MLC Rating | Bridge Weight | Total Incl. Nose | Load |
|---|---|---|---|---|
| 5m | MLC50 | 1.35t | 1.57t | |
| 12m | MLC40 | 2.70t | 3.15t | |
| 15m | MLC30 | 4.05t | 4.72t | |
| 20m | MLC24 | 5.40t | 6.30t | |
| 25m | MLC16 | 6.75t | 7.87t | |
| 30m | MLC10 | 8.10t | 9.44t |
10 Te (Foxhound) @ 30m max span · MLC30 @ spans up to 15m · Extended: 90m pier sets · 120m M3 pontoon
The octet truss
Weld-free spaceframe.
Bolted, repairable, indefinite.
For 100 ft (30m) spans, the Octet-Truss configuration allows direct integration of the launch nose into the main bridge framework. Bridges deploy as complete trackway pairs over a demountable, lightweight launch skate.

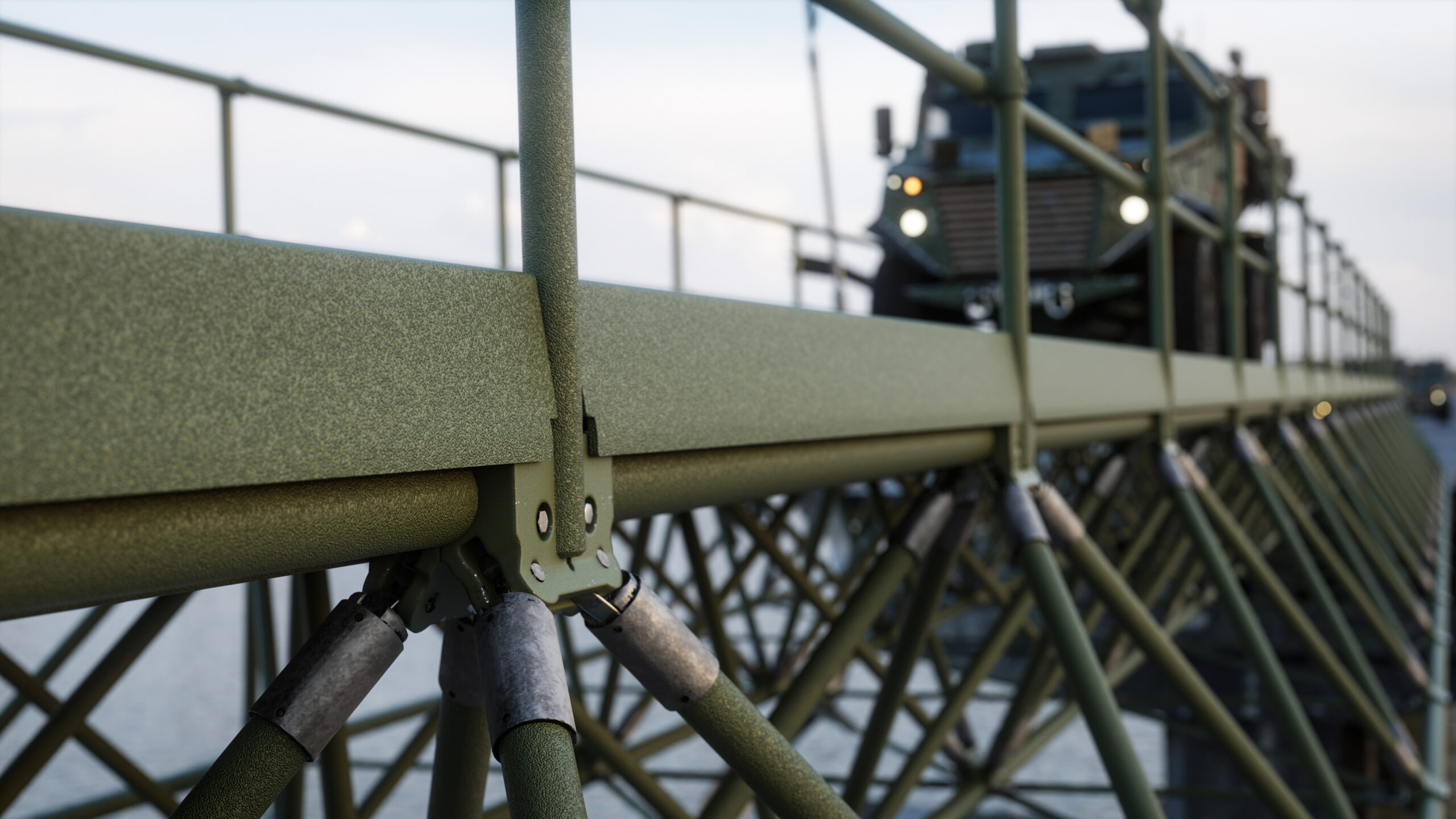

Chord tubes
Machined 6082-T6 aluminium. CNC-turned threaded ends. Fully interchangeable.
Node connectors
Cast aluminium clamp blocks, CNC-milled. Bolt-up, no welding.
Diagonal bracing
Spaceframe diagonals forming a fully triangulated 3D truss.
Deck plates
Aluminium, laid across both trackways forming roadway and lateral bracing.
Launch skate
Demountable steel cradle, chain-roller rails. 2m beam, 13kg.
Launch nose
Cable-stayed steel trestle, integrated into framework during push-launch.
Launch system
No far bank required.

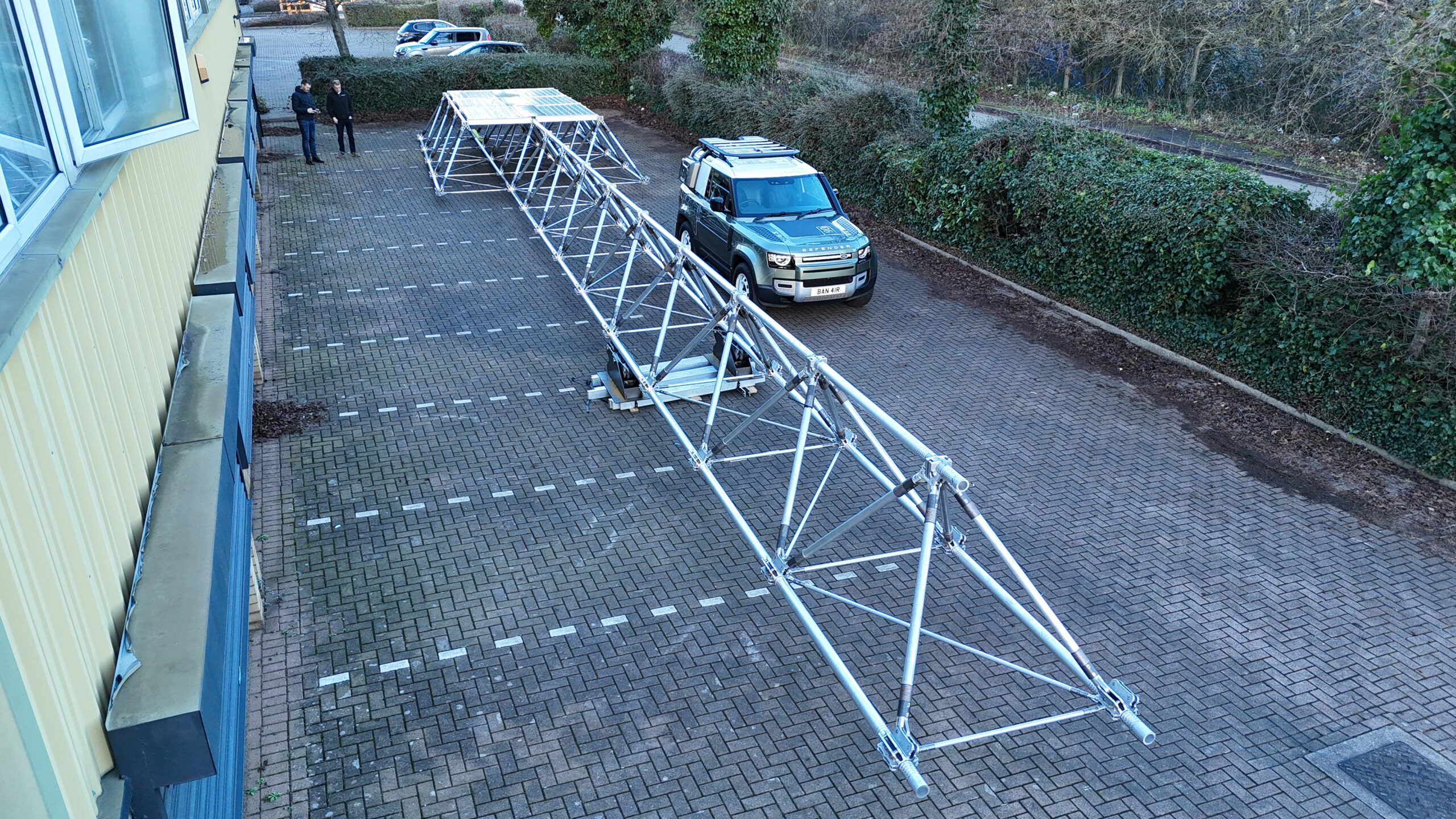

The EB100 uses a patented cantilever-launch technique. Crew never sets foot on the far bank to put the bridge across.
01 | 06 — Position
Set the skate
Position the demountable launch skate (2m beam, 13kg) at the gap edge on the home bank.
02 | 06 — build
Assemble the trackway
Build bay-by-bay on the home bank. Bolted nodes only — no welding, no specialist tools.
03 | 06 — fit
Fit the launch nose
Cable-stayed trestle integrates directly with the leading bays of the main spaceframe framework.
04 | 06 — push
Push-launch by handy
Push the growing trackway over the skate rollers. Cantilevers out across the gap from the home bank only.
05 | 06 — land
Land the nose
Leading end touches down on the far bank edge. No equipment needed on the far side at any point.
06 | 06 — deck
Lower & deck
Lower onto bearing pads on both banks. Lay deck plates. Remove launch nose. Open to traffic.
Engineering Logic
Why launch from one side?
Most rapid-deployment bridge systems still need cranage, far-bank pioneer crews, or a launch vehicle. Each is a target, a delay, or a footprint that betrays the crossing site. The EB100 removes them all.
The cantilevered spaceframe is launched horizontally over a low-profile skate, by the crew, from the home bank only. Once the nose touches down, the structure is already in position — it just needs lowering and decking.
Portability
"A-Bridge-in-a-Plank."

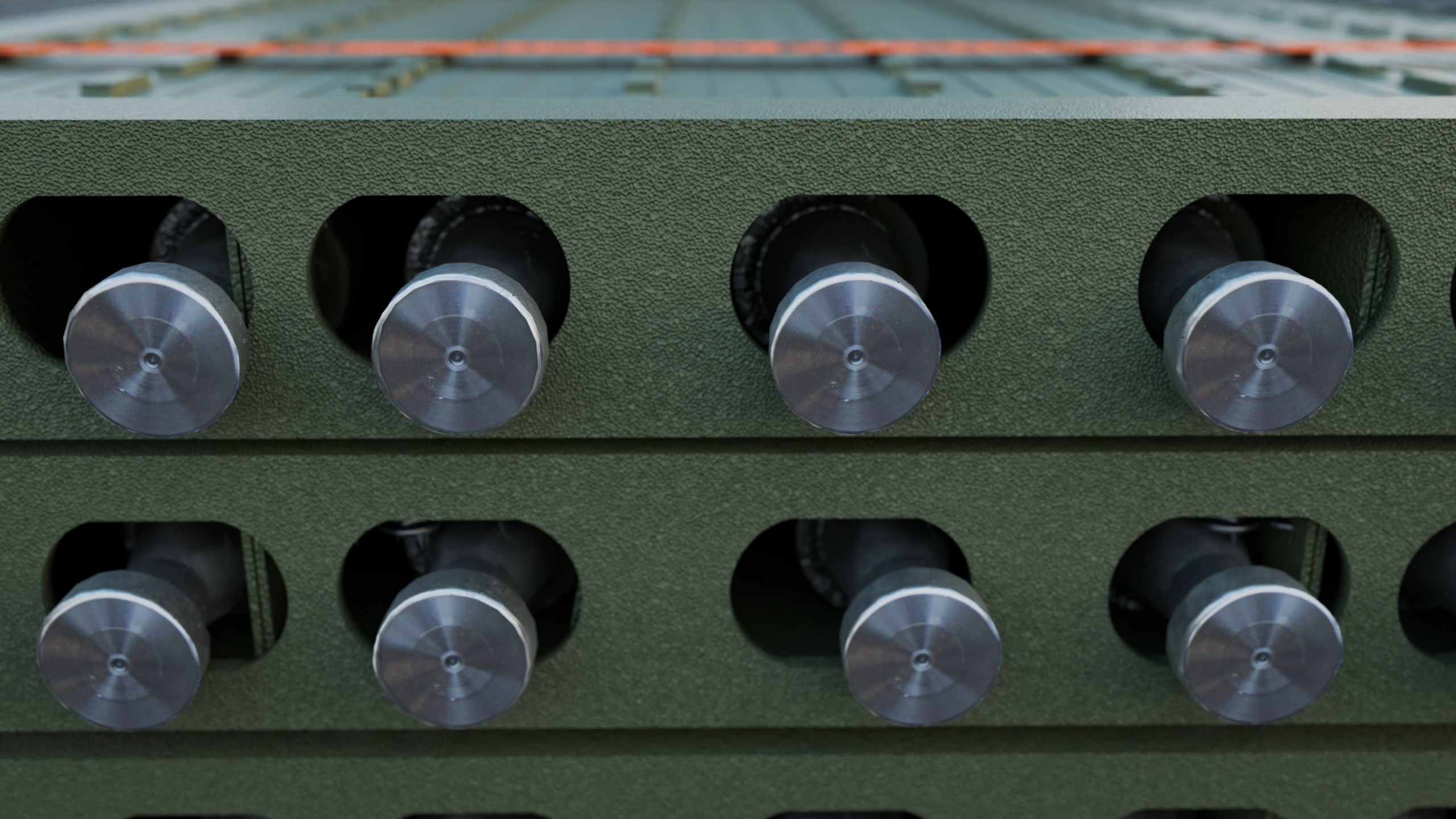

All members 2m or less — flat-packed inside the bridge’s own 2m hollow deck planks. A 30m bridge that typically needs seven HGVs now needs one DROPS vehicle.
Packed dimensions
0.8 × 2.0 × 1.5m
12m bridge (2.4m³) — Foxhound / Humvee trailer
4.5 × 2.0 × 1.5m
30m bridge — single DROPS vehicle
Setup time
30 minutes to 3 hours depending on span
WAVLB — Armoured Placement
12m Wheeled Assault Vehicle Launched Bridge placed under armour via Wolfhound. Armoured transit and placement. MLC40.
AIR-DROP COMPATIBILITY
Designed for air dropping. Robust, low-volume, lightweight — fits standard military air-drop containers
Compatible Vehicles
From MRZR to Boxer.
Infill deck planks bridge between the two trackways. One system serves the full vehicle spectrum — light tactical to 40-tonne armoured.

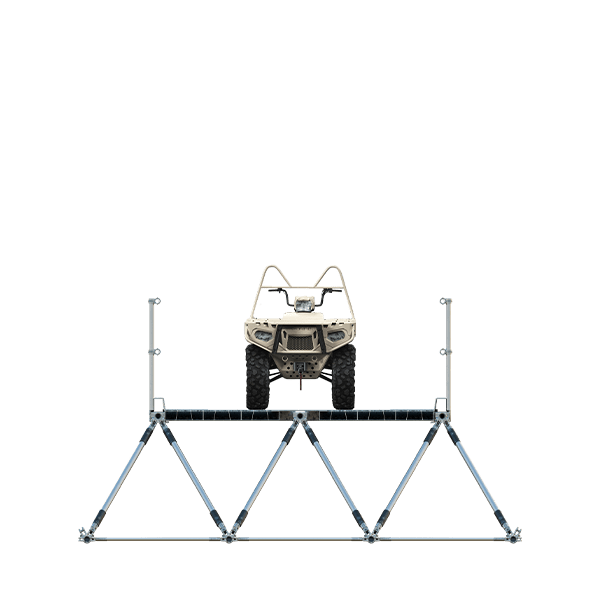

ATV Quad
1.2m wide · 700lbs avg
30m span

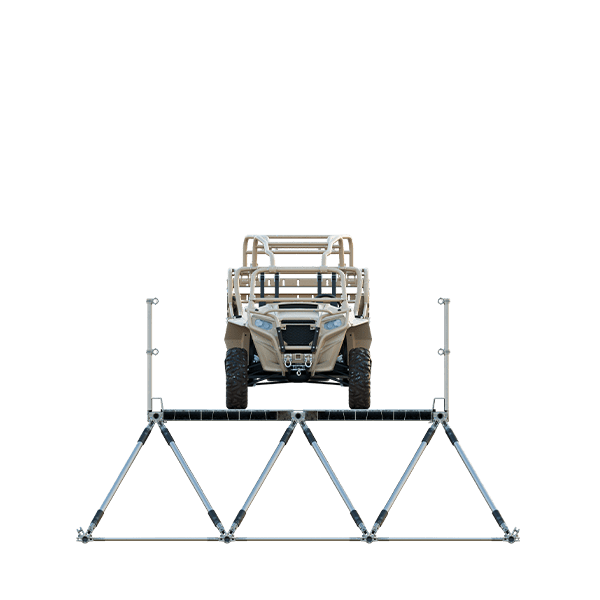

MRZR D4
1.5m wide · 2,000lbs avg
30m span

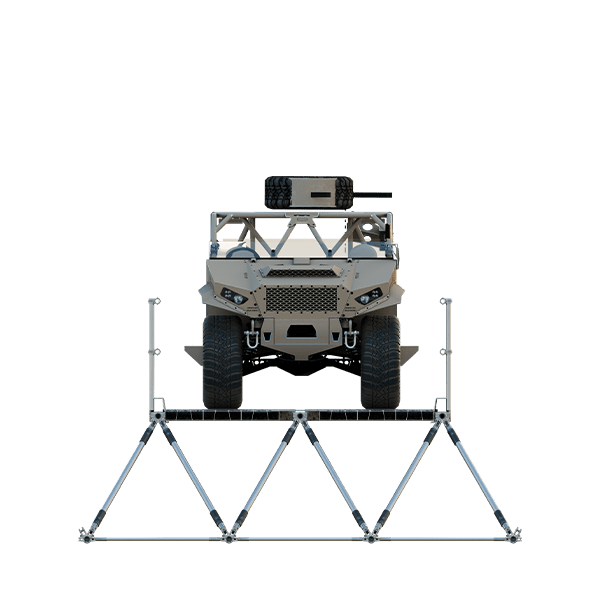

Dagor
1.9m wide · 8,480lbs GVW
30m span

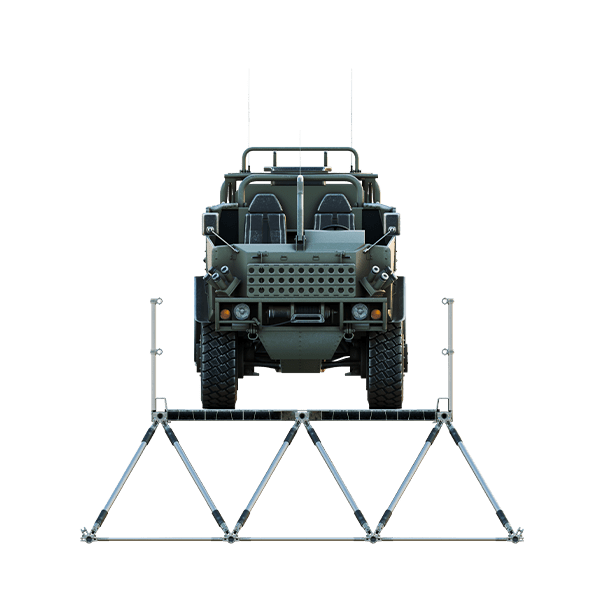

Coyote
2.0m wide · 10.5t
30 m span

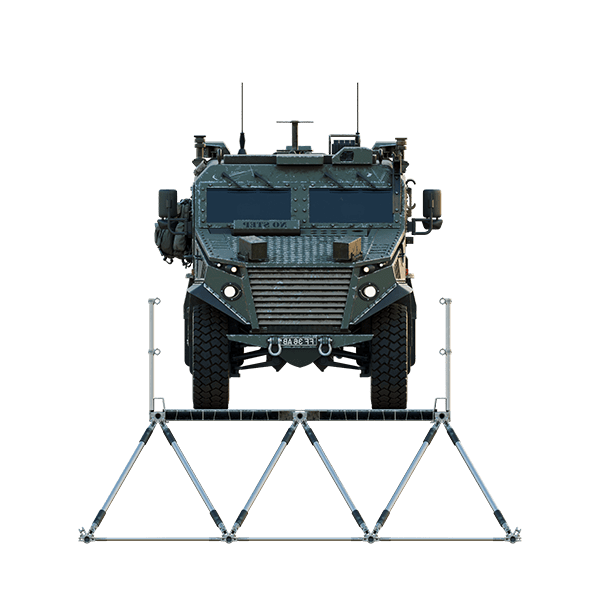

Foxhound
2.1m wide · 10.5t
30m span

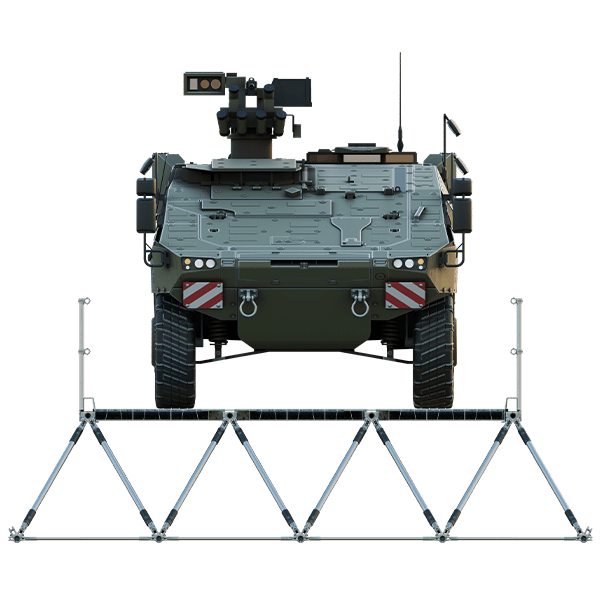

Boxer
2.99m wide · 40t
12m span

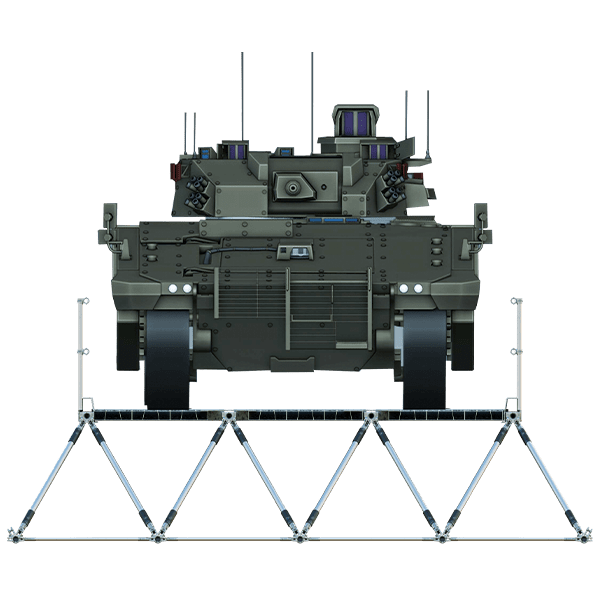

Ajax Tank
3.35m wide · 42t
12m span
HAND ASSEMBLE MODULAR SPANS
UP TO 100FT
In context
Vs. the incumbent.
Compared head-to-head against the General Dynamics Infantry Assault Bridge (IAB) and Bailey-class panel bridge systems — the EB100 redefines what portable bridging looks like.
Bailey heaviest panel: 56kg+ · EB100 max component: 20kg
GD IAB panel: 4.4m / 56kg · EB100: 2m / 20kg max
GD IAB cost: ~£160k · EB100 cost: ~£20k
Bailey requires: crane + 6+ person lifts · EB100 requires: no cranage
